1984 Ur-quattro 20vt, 336whp 380 torques, 6-speed

Author Message
 Post subject: Re: 1984 Ur-q with 20vt, engine is in!
PostPosted: Tue Aug 31, 2010 8:42 am
Offline
Chirping second

Joined: Wed Aug 24, 2005 11:42 am
Posts: 97
I'm not positive on all this, but..I'm sure I'll get corrected if I'm posting inaccurately.
With using a AAN serp belt system, I'm assuming you are planning on keeping the AAN hydraulic pump and bracket because they are such a good design together. But, doesn't it have quite a bit more pressure that your rack might handle? A friend placed a 3B pump and bracket in his UrQ and it blew the seals out of the UrQ rack. Can you step down the pressure, back to the UrQ pressure necessary? The 034 short ratio rack is capable of the higher pressure, as would be any CQ rack, I believe the CQ 7A Hyd pump is about the same pressure as the AAN.
Are you keeping A/C via the AAN pump?
Jack


Top
 Profile
Reply with quote
 Post subject: Re: 1984 Ur-q with 20vt, engine is in!
PostPosted: Tue Aug 31, 2010 9:48 am
Offline
mach 2 with my hair on fire
User avatar

Joined: Fri Mar 26, 2004 3:02 pm
Posts: 2794
Location: Milton, Canada
Sorry, no AAN components here, it will have regular belt pulley (7A or 3B) and stock Ur-q steering pump/rack.
For now no A/C although I will leave that option open for later.

_________________
Martin Pajak
www.quattro.ca
82 Ur-q - SQ project, long term
83 80 q - Euro 2-door!!
85 Ur-q - Euro with 3B
86 4000 quattro with 59,000km on the clock
86 5000CD quattro avant, all original
93 90q - 2.5TDI, 6-speed
93 80q Avant - 2.5TDI, 6-speed in the works
94 S2 Avant, stock


Top
 Profile
Reply with quote
 Post subject: Re: 1984 Ur-q with 20vt, engine is in!
PostPosted: Tue Aug 31, 2010 10:31 am
Offline
I post, therefore I am

Joined: Thu Oct 12, 2006 7:15 am
Posts: 6092
Location: Chicago
Martin, this might be dumb question, but without the trans there do you have something in place holding the motor from tilting forward right now? maybe that's where your 1/4" will come, at least up top where the TB cover is.

_________________
Peter


Top
 Profile
Reply with quote
 Post subject: Re: 1984 Ur-q with 20vt, engine is in!
PostPosted: Tue Aug 31, 2010 10:50 am
Offline
mach 2 with my hair on fire
User avatar

Joined: Fri Mar 26, 2004 3:02 pm
Posts: 2794
Location: Milton, Canada
Yes, I have the snub nose mount turned upside down. But yes, I do not know exactly where it will sit untill I get the tranny in there. I can guestimate assuming that the carank is horizontal.

_________________
Martin Pajak
www.quattro.ca
82 Ur-q - SQ project, long term
83 80 q - Euro 2-door!!
85 Ur-q - Euro with 3B
86 4000 quattro with 59,000km on the clock
86 5000CD quattro avant, all original
93 90q - 2.5TDI, 6-speed
93 80q Avant - 2.5TDI, 6-speed in the works
94 S2 Avant, stock


Top
 Profile
Reply with quote
 Post subject: Re: 1984 Ur-q with 20vt, engine is in!
PostPosted: Tue Aug 31, 2010 11:21 am
Offline
mach 2 with my hair on fire
User avatar

Joined: Tue Oct 18, 2005 9:53 am
Posts: 1438
Location: Virginia Beach, VA
If you find you can't get that IC to work I might take it off your hands if the price is right :P

_________________
__________________________

-Justin

'96 A4 12v Daily
'85 4000S quattro: Project Car


Top
 Profile
Reply with quote
 Post subject: Re: 1984 Ur-q with 20vt, engine is in!
PostPosted: Tue Aug 31, 2010 1:45 pm
Offline
I post, therefore I am
User avatar

Joined: Sat Aug 28, 2004 6:40 pm
Posts: 3628
Location: Sin City
I think a smaller intercooler with better airflow is better than a bigger one which will pass no air thgouh it... Im glad you are trying to make it work withouth cutting the core support though, this has been an internal battle of mine for a while now.

I almost lean towards fitting a very thin and efficient radiator in front and using a large intercooler over where the radiator normally goes. Not sure if anyone has had success with the I5's but I know there are some V8 powered cars in that configuration.

_________________
A3 2.0t DSG quattro
Integrale' (x2)
UrQuattro 07k
Lancia Scorpion
Lancia Beta Coupe'


Top
 Profile
Reply with quote
 Post subject: Re: 1984 Ur-q with 20vt, analog or digi dash???
PostPosted: Wed Sep 01, 2010 11:19 am
Offline
Redline?
User avatar

Joined: Wed May 26, 2010 9:31 am
Posts: 157
Location: Santa Fe, NM
ralleyquattro wrote:
All wiring harnesses are in, carpets are also back in.


Hey Martin,

It's looking GREAT! :woowoo:

When you install/ re-install the carpets, do you use the original carpet pad or something like DynaMat or nothing?

_________________
"Life's journey is not to arrive at the grave safely in a well preserved body, but rather to skid in sideways, totally worn out, shouting "...holy sh*t ...what a ride!" " - George Carlin

David

'06 A4 2.0TQ - Wife's car
'01 A4 1.8TQ - DD SOLD
'83 Ur Quattro - Project


Top
 Profile
Reply with quote
 Post subject: Re: 1984 Ur-q with 20vt, engine is in!
PostPosted: Wed Sep 01, 2010 3:47 pm
Offline
mach 2 with my hair on fire
User avatar

Joined: Fri Mar 26, 2004 3:02 pm
Posts: 2794
Location: Milton, Canada
I use nothing under the carpet.. I have done that before on my previous cars and I enjoy a bit more road noise.

_________________
Martin Pajak
www.quattro.ca
82 Ur-q - SQ project, long term
83 80 q - Euro 2-door!!
85 Ur-q - Euro with 3B
86 4000 quattro with 59,000km on the clock
86 5000CD quattro avant, all original
93 90q - 2.5TDI, 6-speed
93 80q Avant - 2.5TDI, 6-speed in the works
94 S2 Avant, stock


Top
 Profile
Reply with quote
 Post subject: Re: 1984 Ur-q with 20vt, 6-speed 01E is in!
PostPosted: Sat Sep 11, 2010 5:19 pm
Offline
mach 2 with my hair on fire
User avatar

Joined: Fri Mar 26, 2004 3:02 pm
Posts: 2794
Location: Milton, Canada
So... with help of Craig Cook (Highlander) got the 01E in the car and were able to verify few things.

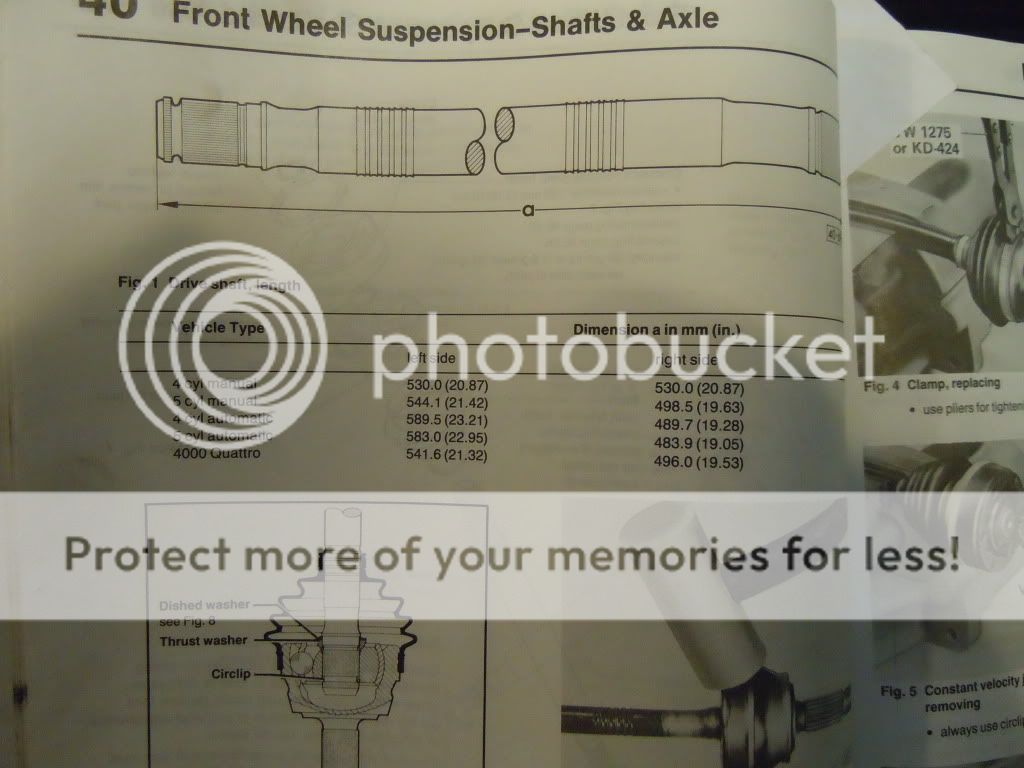

Ur-q has different shaft lenth side to side. Pass side is short and drivers side is long.
Pic borrowed from Hank's site.


The long shaft will not fit any longer.
The pass side shaft fits, but could use a 5mm spacer.
It doesn't make much sence since my original measurement of flange location suggested we would have 20mm to play with. But I'll take it.
Here it is all bolted up.. ;) Excuse the dirty CV but this is just a preliminary fitting.


The drivers side which originally had a long shaft will not work anymore.
On this side a short shaft needs to be used with what I measure to be a 25mm spacer.
Here is the gap to be filled. Again excuse the filthy CV.


The good part is that spacer is much easier to make than shortening a shaft.

Next came the shifter.
I used the entire Ur-q shifter rod with selector and tie rod.
Here is the extension piece (1/4" thich bar) to allow tie rod to work properly.


And the money shot in neutral.


There is an issue getting the 6th gear engaged as the shaft hits the floor, but that can be fixed using the proper 01E selector which I wll modify to allow use of Ur-q rod.
Here is a pic of the stock 01E selector and Ur-q on the right, the Ur-q ball needs to be transfered to the 01E part.


I'll see if someone can make me couple of spacers for the shafts.

As usual, more to come.
Cheers

_________________
Martin Pajak
www.quattro.ca
82 Ur-q - SQ project, long term
83 80 q - Euro 2-door!!
85 Ur-q - Euro with 3B
86 4000 quattro with 59,000km on the clock
86 5000CD quattro avant, all original
93 90q - 2.5TDI, 6-speed
93 80q Avant - 2.5TDI, 6-speed in the works
94 S2 Avant, stock


Top
 Profile
Reply with quote
 Post subject: Re: 1984 Ur-q with 20vt, 6-speed 01E is in!
PostPosted: Sat Sep 11, 2010 5:48 pm
Offline
mach 2 with my hair on fire
User avatar

Joined: Fri Mar 26, 2004 3:02 pm
Posts: 2794
Location: Milton, Canada
I another potential issue.
With MTM and phenolic spacer and tranny attached this is how the engine sits in the bay.


I kind of doubt the throttle will clear the hood.. doh!
Might have to take that spacer off.

_________________
Martin Pajak
www.quattro.ca
82 Ur-q - SQ project, long term
83 80 q - Euro 2-door!!
85 Ur-q - Euro with 3B
86 4000 quattro with 59,000km on the clock
86 5000CD quattro avant, all original
93 90q - 2.5TDI, 6-speed
93 80q Avant - 2.5TDI, 6-speed in the works
94 S2 Avant, stock


Top
 Profile
Reply with quote
 Post subject: Re: 1984 Ur-q with 20vt, 6-speed 01E is in!
PostPosted: Sat Sep 11, 2010 6:31 pm
Offline
I post, therefore I am

Joined: Sat Dec 06, 2003 4:03 pm
Posts: 6611
Location: Provo, UTAH
My Custom manifolds look just like that, and htey clear fine. It is really a lot worse than it really is. I would wait ti ll the hood is on to make a choice. :) Also, on the gear selector.. I shortened mine on the 016 to a shorter throw on the shifter. I just cut out .25" to lower it. You could do the same thing with the two you have there. Just cut the 01e shifter portion at the base, and weld on the 016 portion. It is cast, but weldable. If you lower it like that, you may find that it does not hit the tunnel as well.

We call those toofers around here.. Gaining two things with one cut and weld.

_________________
Hank
81 URQ 20vt 612whp/527wtq


Top
 Profile
Reply with quote
 Post subject: Re: 1984 Ur-q with 20vt, 6-speed 01E is in!
PostPosted: Tue Sep 14, 2010 7:16 pm
Offline
mach 2 with my hair on fire
User avatar

Joined: Fri Mar 26, 2004 3:02 pm
Posts: 2794
Location: Milton, Canada
Looks like the linkage will work afterall. I had to shim the transmission mounts 1/4" or so to lower the gearbox and moded the shift selector as per above to fit the original 016 shifter rod/bushing.

Here is reverse, note how close the rod is to the transmission casing!

Here is second, much better!

Here is 5th, closer to the tunnel!

And finally 6th, it's so close that without lowering the gearbox 1/4" there was resistance getting in.

Also had a chance to look at the intercooler, the way the engine sits now I have plenty of room for the IC! Woohoo!

More to come.

_________________
Martin Pajak
www.quattro.ca
82 Ur-q - SQ project, long term
83 80 q - Euro 2-door!!
85 Ur-q - Euro with 3B
86 4000 quattro with 59,000km on the clock
86 5000CD quattro avant, all original
93 90q - 2.5TDI, 6-speed
93 80q Avant - 2.5TDI, 6-speed in the works
94 S2 Avant, stock


Top
 Profile
Reply with quote
 Post subject: Re: 1984 Ur-q with 20vt, 6-speed 01E is in!
PostPosted: Tue Sep 14, 2010 7:26 pm
Offline
Redline?
User avatar

Joined: Wed May 10, 2006 10:32 am
Posts: 187
Martin,

Can you hurry up and make this thing work so I can get my transmission back!

cheers, Mike

p.s. It's looking good :)


Top
 Profile
Reply with quote
 Post subject: Re: 1984 Ur-q with 20vt, 6-speed 01E is in!
PostPosted: Tue Sep 14, 2010 8:18 pm
Offline
I post, therefore I am

Joined: Sat Dec 06, 2003 4:03 pm
Posts: 6611
Location: Provo, UTAH
So what ball are you using on the end of the urS arm? Shoot, I though lowering everything woldmake it possible to get i off the tunnel, but the casing may not allow that.

Mike, Should I send two or three sets of spacers out to Martin? :) I keep trying to figure out a way to get into this Canadian threesome of SQ builders :)

_________________
Hank
81 URQ 20vt 612whp/527wtq


Top
 Profile
Reply with quote
 Post subject: Re: 1984 Ur-q with 20vt, 6-speed 01E is in!
PostPosted: Wed Sep 15, 2010 5:55 am
Offline
mach 2 with my hair on fire

Joined: Fri Feb 18, 2005 7:29 am
Posts: 1276
ShavedQuattro wrote:
So what ball are you using on the end of the urS arm? Shoot, I though lowering everything woldmake it possible to get i off the tunnel, but the casing may not allow that.

Mike, Should I send two or three sets of spacers out to Martin? :) I keep trying to figure out a way to get into this Canadian threesome of SQ builders :)


Don't forget me Hank :D

Craig


Top
 Profile
Reply with quote
 Post subject: Re: 1984 Ur-q with 20vt, 6-speed 01E is in!
PostPosted: Wed Sep 15, 2010 7:27 am
Offline
I post, therefore I am

Joined: Thu Oct 06, 2005 8:54 pm
Posts: 3726
Location: Las Vegas, NV
Craig, he wouldn't forget you on that end, just make sure Martin remembers me on this end. :wink: :D

_________________
John Iroz

01 225hp Audi TT
83 Mars Red Urq 2.5l 20v stroker (dream stage)
06 2.0TQ S-line A4 (wifes)...Swagger Wagon is history
00 VW 1.8T NB (daughters)
97 HD F250 Powerstroke
07 ST1300


Top
 Profile
Reply with quote
 Post subject: Re: 1984 Ur-q with 20vt, 6-speed 01E is in!
PostPosted: Wed Sep 15, 2010 7:49 am
Offline
kickin' tires'n lightin fires
User avatar

Joined: Fri Nov 28, 2008 7:36 am
Posts: 815
Location: Salem MA, USA
this is all very tight... any concerns when the engine and tranny move in their mounts?

_________________
• ) ) )
Buy stuff from EFIExpress!


Top
 Profile
Reply with quote
 Post subject: Re: 1984 Ur-q with 20vt, 6-speed 01E is in!
PostPosted: Wed Sep 15, 2010 7:57 am
Offline
I post, therefore I am

Joined: Sat Dec 06, 2003 4:03 pm
Posts: 6611
Location: Provo, UTAH
I am pretty much solid mounted, but oem mounts may be a concern.

_________________
Hank
81 URQ 20vt 612whp/527wtq


Top
 Profile
Reply with quote
 Post subject: Re: 1984 Ur-q with 20vt, 6-speed 01E is in!
PostPosted: Wed Sep 15, 2010 8:00 am
Offline
mach 2 with my hair on fire

Joined: Fri Feb 18, 2005 7:29 am
Posts: 1276
quattro87 wrote:
Craig, he wouldn't forget you on that end, just make sure Martin remembers me on this end. :wink: :D


John ,

I like this idea of us pooling our resources, as long as we are all happy
at the end off the day, I'm all for it. It's a nice feeling helping each other out.


I think more people should pool their resources in certain situations.

There's no need to re-invent the wheel every time. Were all here on this forum for
the same reason. :cheers: :cheers:


Cheers,

Craig


Top
 Profile
Reply with quote
 Post subject: Re: 1984 Ur-q with 20vt, 6-speed 01E is in!
PostPosted: Wed Sep 15, 2010 10:21 am
Offline
mach 2 with my hair on fire
User avatar

Joined: Fri Mar 26, 2004 3:02 pm
Posts: 2794
Location: Milton, Canada
ShavedQuattro wrote:
So what ball are you using on the end of the urS arm? Shoot, I though lowering everything woldmake it possible to get i off the tunnel, but the casing may not allow that.

Mike, Should I send two or three sets of spacers out to Martin? :) I keep trying to figure out a way to get into this Canadian threesome of SQ builders :)


I used the ball from 016 on the 01E selector as per this pic.


I'll take a better one soon, basically cut off the 01E ball, drill a hole to mount the 016 one, done.

Cheers

_________________
Martin Pajak
www.quattro.ca
82 Ur-q - SQ project, long term
83 80 q - Euro 2-door!!
85 Ur-q - Euro with 3B
86 4000 quattro with 59,000km on the clock
86 5000CD quattro avant, all original
93 90q - 2.5TDI, 6-speed
93 80q Avant - 2.5TDI, 6-speed in the works
94 S2 Avant, stock


Top
 Profile
Reply with quote
 Post subject: Re: 1984 Ur-q with 20vt, 6-speed 01E is in!
PostPosted: Wed Sep 15, 2010 10:23 am
Offline
mach 2 with my hair on fire
User avatar

Joined: Fri Mar 26, 2004 3:02 pm
Posts: 2794
Location: Milton, Canada
chapel wrote:
this is all very tight... any concerns when the engine and tranny move in their mounts?


Well... given these are 034 mounts there should be very little movement.. ;)

We'll find out soon enough.

Cheers

_________________
Martin Pajak
www.quattro.ca
82 Ur-q - SQ project, long term
83 80 q - Euro 2-door!!
85 Ur-q - Euro with 3B
86 4000 quattro with 59,000km on the clock
86 5000CD quattro avant, all original
93 90q - 2.5TDI, 6-speed
93 80q Avant - 2.5TDI, 6-speed in the works
94 S2 Avant, stock


Top
 Profile
Reply with quote
 Post subject: Re: 1984 Ur-q with 20vt, 6-speed 01E is in!
PostPosted: Thu Oct 07, 2010 6:30 am
Offline
mach 2 with my hair on fire
User avatar

Joined: Fri Mar 26, 2004 3:02 pm
Posts: 2794
Location: Milton, Canada
Bit of an update, last couple of weeks have been slow, but, managed to get the HVAC unit back in and front brakes on. Pics to follow.
Next are fuel and brake lines.. those should be fun without a hoist.. ;)

_________________
Martin Pajak
www.quattro.ca
82 Ur-q - SQ project, long term
83 80 q - Euro 2-door!!
85 Ur-q - Euro with 3B
86 4000 quattro with 59,000km on the clock
86 5000CD quattro avant, all original
93 90q - 2.5TDI, 6-speed
93 80q Avant - 2.5TDI, 6-speed in the works
94 S2 Avant, stock


Top
 Profile
Reply with quote
 Post subject: Re: 1984 Ur-q with 20vt, 6-speed 01E is in!
PostPosted: Wed Oct 13, 2010 5:11 am
Offline
mach 2 with my hair on fire
User avatar

Joined: Fri Mar 26, 2004 3:02 pm
Posts: 2794
Location: Milton, Canada
So.. I've had a very productive weekend.

Fuel lines are in and all hooked up to the fuel rail.
Pump is in with all the other stuff, all that is left is supply (044 pump uses a threaded connection of some sorts) and electrical supply.

All hard brake lines are in and proportioning valve hooked up as well.
Just need to finish rear brakes and I can pour the fluid.

Crank pully is in (thanks Mike).

Next will be the IC setup. Giving me a headache just thinking about it.

I also used an S2 driver side motor mount to allow mounting of the aux water pump.

_________________
Martin Pajak
www.quattro.ca
82 Ur-q - SQ project, long term
83 80 q - Euro 2-door!!
85 Ur-q - Euro with 3B
86 4000 quattro with 59,000km on the clock
86 5000CD quattro avant, all original
93 90q - 2.5TDI, 6-speed
93 80q Avant - 2.5TDI, 6-speed in the works
94 S2 Avant, stock


Top
 Profile
Reply with quote
 Post subject: Re: 1984 Ur-q with 20vt, 6-speed 01E is in!
PostPosted: Wed Oct 13, 2010 8:07 am
Offline
I post, therefore I am

Joined: Sat Dec 06, 2003 4:03 pm
Posts: 6611
Location: Provo, UTAH
Good work Martin. This weekend I flogged the URQ quite a bit with the 01e setup/spacers, and everything held up fine with no complaint. I think we have a winner. I trimmed the drivers spacer demension a bit, and will post up the final measurement I went with the next time the car is on the lift.

Look out for a set of your own :)

Hank

_________________
Hank
81 URQ 20vt 612whp/527wtq


Top
 Profile
Reply with quote
 Post subject: Re: 1984 Ur-q with 20vt, 6-speed 01E is in!
PostPosted: Wed Oct 13, 2010 8:31 am
Offline
mach 2 with my hair on fire
User avatar

Joined: Fri Mar 26, 2004 3:02 pm
Posts: 2794
Location: Milton, Canada
ShavedQuattro wrote:
Good work Martin. This weekend I flogged the URQ quite a bit with the 01e setup/spacers, and everything held up fine with no complaint. I think we have a winner. I trimmed the drivers spacer demension a bit, and will post up the final measurement I went with the next time the car is on the lift.

Look out for a set of your own :)

Hank


Thank you!

I was waiting to see how you made out in Vegas, great to hear all worked out well.

Seeing the amount of work you did in such short span I am really motivated to get mine back on it's wheels and going brum brum.

Looking forward to the pics/vid from the event.

Cheers

_________________
Martin Pajak
www.quattro.ca
82 Ur-q - SQ project, long term
83 80 q - Euro 2-door!!
85 Ur-q - Euro with 3B
86 4000 quattro with 59,000km on the clock
86 5000CD quattro avant, all original
93 90q - 2.5TDI, 6-speed
93 80q Avant - 2.5TDI, 6-speed in the works
94 S2 Avant, stock


Top
 Profile
Reply with quote
Display posts from previous:  Sort by
Post new topic Reply to topic  [ 563 posts ] Go to page Previous  1, 2, 3, 4, 5, 6, 7 ... 23  Next
Search this topic:
motorgeek.com :: Board index :: Motorgeek Madness :: Projects

Jump to:



Information

Users browsing this forum: No registered users and 1 guest



You cannot post new topics in this forum
You cannot reply to topics in this forum
You cannot edit your posts in this forum
You cannot delete your posts in this forum
You cannot post attachments in this forum
  |  It is currently Sun Jun 25, 2017 12:08 am
Share |
