A8myFiero wrote:
I was just told something intresting that i had the tensioner on the wrong side it should be on the slack side of the belt and after thinking about it they are right


nope, they were right before you thought about it. :lol:


seriously though make sure you get your pulley wrap amounts right and design and build all the brackets very well or this will not go well at all.
:cheers:

_________________
7a head/milled mc2 bottom w/holset Hx35...500hp for $500?
viewtopic.php?t=6726


Top
 Profile
Reply with quote
 Post subject: Re: ABZ Fiero
PostPosted: Fri Nov 27, 2015 4:35 am
Offline
Stuck in first

Joined: Thu Apr 08, 2010 4:49 am
Posts: 24
Location: UK
Looking forward to seeing this installed and running!

I'd agree with pkw on the wrap and bracket strength, there is quite a lot of force needed on the belts to drive the supercharger. Another thing to watch out for is keeping the belt tensioned, it's surprising just how much range is needed. When doing mine the initial plan was to manually adjust and then fix the tension but after seeing videos like this https://www.youtube.com/watch?v=8hNJgCjV28k I ended up adding a tensioner. My setup is shown below which gave around 10-15mm of adjustment.

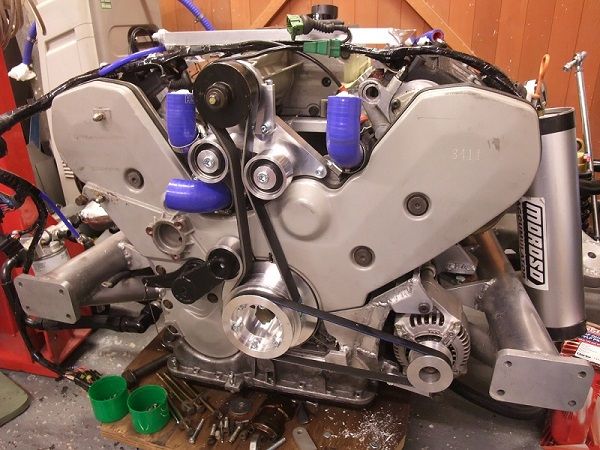

Image.

After running for the first time I noticed witness marks on the crank and tensioner pulley showing that it had still run out of range so ended up lengthening the tensioner arm to provide a bit more adjustment.


Top
 Profile
Reply with quote
 Post subject: Re: ABZ Fiero
PostPosted: Fri Nov 27, 2015 5:28 pm
Offline
I sprinkle rubber on my Cherios

Joined: Sun Jun 10, 2012 12:36 pm
Posts: 406
Location: NA
i am thinking of using the stock tensioner but i need to put the fan pulley back on with out the fan and i will run a belt that just barley fits but i dont know if that is a good idea or not but thats what i am going to try . how much power are you making and at what boost do you have a build thread of your engine if so could you post it so i can read all that you have done and thanks for the help


Top
 Profile
Reply with quote
 Post subject: Re: ABZ Fiero
PostPosted: Sat Nov 28, 2015 3:09 am
Offline
Stuck in first

Joined: Thu Apr 08, 2010 4:49 am
Posts: 24
Location: UK
I ended up running the shortest belt that would fit in order to maximise the range available on the tensioner - no problems so far. The tensioner on mine is the standard one just with the arm reversed and a new pulley welded on.
Bear in mind that the longer the belt run between the crank and SC the more it will stretch and so the more tensioner range needed. Also if you have any accessories on that side of the run then the extra load from the SC will put a fair bit of extra stress on their bearings. That's why I run the alternator on a separate belt, it allows a shorter main belt and takes the load off the alternator bearings.
Ive been through a few versions of crank pulley to adjust the SC speed and have ended up with it making 10psi of boost although I lose 2psi through the charge cooler so the engine only sees 8psi. This is giving me just over 400hp with no sign of detonation so far (although the charge cooler does keep the inlet temps down, it may be different on yours without a cooler).
No build thread I'm afraid but hope the above helps.


Top
 Profile
Reply with quote
 Post subject: Re: ABZ Fiero
PostPosted: Sat Nov 28, 2015 9:56 am
Offline
I sprinkle rubber on my Cherios

Joined: Sun Jun 10, 2012 12:36 pm
Posts: 406
Location: NA
are you running stock compression or did you lower it by stacking head gaskets i think i am going to run the stock compression ratio and hope the water / meth injection will take care of detonation along with cooling the intake charge i am shooting for 15 psi of boost


Top
 Profile
Reply with quote
 Post subject: Re: ABZ Fiero
PostPosted: Sat Nov 28, 2015 10:41 am
Offline
Stuck in first

Joined: Thu Apr 08, 2010 4:49 am
Posts: 24
Location: UK
It's still on stock internals and standard compression but it is running on 99ron fuel.
Tempted to push the boost up a little more on mine but it's a big job to pull the engine out and make a new crank pulley so will be leaving it as is for now. Will be interested in seeing how you get on at 15psi though!
What I am on the look out for is a pair of S8 exhaust cams to see if they let it rev a little more and help create a bit more torque at the top end.


Top
 Profile
Reply with quote
 Post subject: Re: ABZ Fiero
PostPosted: Sat Nov 28, 2015 11:46 am
Offline
I sprinkle rubber on my Cherios

Joined: Sun Jun 10, 2012 12:36 pm
Posts: 406
Location: NA
thanks for the info now that i have that info i am not going to pull the heads to stack head gaskets what supercharger are you using and what pully sizes and as far as pulleys go i have bough a quick change system for th e blower i am not sure what the smallest upper pulley i can buy


Top
 Profile
Reply with quote
 Post subject: Re: ABZ Fiero
PostPosted: Mon Nov 30, 2015 3:00 pm
Offline
Stuck in first

Joined: Thu Apr 08, 2010 4:49 am
Posts: 24
Location: UK
The supercharger is a m112 out of a Jag XJR. The supercharger pulley is the standard Jag one, afaid I can't remember the crank pulley size but will check and get back to you.


Top
 Profile
Reply with quote
 Post subject: Re: ABZ Fiero
PostPosted: Mon Nov 30, 2015 5:02 pm
Offline
I sprinkle rubber on my Cherios

Joined: Sun Jun 10, 2012 12:36 pm
Posts: 406
Location: NA
thanks for the info it really helps alot more than one might think it lets me know i am on the right track . next i need to order some injectors but i need to some bushing for the smaller injector sizes they use now since i have not found indjectors that are 42 lbs a hour with the right size but i need to save a bit for them


Top
 Profile
Reply with quote
 Post subject: Re: ABZ Fiero
PostPosted: Sat Dec 12, 2015 7:18 pm
Offline
I sprinkle rubber on my Cherios

Joined: Sun Jun 10, 2012 12:36 pm
Posts: 406
Location: NA
i will be doing the timing belt on the engine and latter in the week i will have the blower drive all done and should start working on getting it in the car


Top
 Profile
Reply with quote
 Post subject: Re: ABZ Fiero
PostPosted: Fri Dec 18, 2015 10:39 am
Offline
I sprinkle rubber on my Cherios

Joined: Sun Jun 10, 2012 12:36 pm
Posts: 406
Location: NA
just ordered Injector bungs so i can use the more common 14 mm injectors and i ordered up some injectors i plane on having the engine all in and running by the end of January but i don't think i will have the water / methanol injection on so i wont be running it to much and i wont bring it into boost


Top
 Profile
Reply with quote
 Post subject: Re: ABZ Fiero
PostPosted: Wed Dec 23, 2015 9:23 am
Offline
I sprinkle rubber on my Cherios

Joined: Sun Jun 10, 2012 12:36 pm
Posts: 406
Location: NA
belt drive for the engine


Top
 Profile
Reply with quote
 Post subject: Re: ABZ Fiero
PostPosted: Wed Dec 23, 2015 1:56 pm
Offline
Stuck in first

Joined: Sat Oct 09, 2010 4:47 am
Posts: 30
Is that belt going to be man enough to turn the M112?

These things can take nearly 60 hp to run http://www.clubgti.com/showthread.php?2 ... rger-Specs" onclick="window.open(this.href);return false;" onclick="window.open(this.href);return false;


Top
 Profile
Reply with quote
 Post subject: Re: ABZ Fiero
PostPosted: Wed Dec 23, 2015 2:33 pm
Offline
I sprinkle rubber on my Cherios

Joined: Sun Jun 10, 2012 12:36 pm
Posts: 406
Location: NA
it is a 6 rib belt but it may not be able to handle it time will tell and it is a M 122 i will move up to a 10 rib if i need to


Top
 Profile
Reply with quote
 Post subject: Re: ABZ Fiero
PostPosted: Thu Dec 24, 2015 9:53 am
Offline
I sprinkle rubber on my Cherios

Joined: Sun Jun 10, 2012 12:36 pm
Posts: 406
Location: NA
this is the engine all painted and the only things needed is injectors and they should be in next week


Top
 Profile
Reply with quote
 Post subject: Re: ABZ Fiero
PostPosted: Fri Dec 25, 2015 3:57 pm
Offline
I post, therefore I am
User avatar

Joined: Thu Feb 10, 2005 8:45 am
Posts: 4676
Location: Norton Shores, Mi. My cat has human-like reflexes
not loving the lack of wrap on that pulley

_________________
7a head/milled mc2 bottom w/holset Hx35...500hp for $500?
viewtopic.php?t=6726


Top
 Profile
Reply with quote
 Post subject: Re: ABZ Fiero
PostPosted: Fri Dec 25, 2015 7:10 pm
Offline
I sprinkle rubber on my Cherios

Joined: Sun Jun 10, 2012 12:36 pm
Posts: 406
Location: NA
you are talking about the supercharger pulley right now i am going to try this but if it slips then i will deal with it


Top
 Profile
Reply with quote
 Post subject: Re: ABZ Fiero
PostPosted: Fri Dec 25, 2015 8:20 pm
Offline
I post, therefore I am
User avatar

Joined: Thu Feb 10, 2005 8:45 am
Posts: 4676
Location: Norton Shores, Mi. My cat has human-like reflexes
a lot of lankyness between that sc pulley and what I am guessing is an ac compressor. I think the jog near the driver side cam pulley could all be moved in toward the crank pulley and a shorter belt could be used along with stronger brackets for everything.
I am just trying to help. Now is the time to do everything 110 percent.

_________________
7a head/milled mc2 bottom w/holset Hx35...500hp for $500?
viewtopic.php?t=6726


Top
 Profile
Reply with quote
 Post subject: Re: ABZ Fiero
PostPosted: Fri Dec 25, 2015 10:04 pm
Offline
I sprinkle rubber on my Cherios

Joined: Sun Jun 10, 2012 12:36 pm
Posts: 406
Location: NA
i woud like a better bracket and i do have some 1/2 inch Aluminum but i can try making a new bracket maybe right off the blower


Top
 Profile
Reply with quote
 Post subject: Re: ABZ Fiero
PostPosted: Tue Dec 29, 2015 7:17 am
Offline
I sprinkle rubber on my Cherios

Joined: Sun Jun 10, 2012 12:36 pm
Posts: 406
Location: NA
stronger idler pulley bracket i just need to get it welded it is made of 1/2 inch thick Aluminum


Top
 Profile
Reply with quote
 Post subject: Re: ABZ Fiero
PostPosted: Tue Jan 05, 2016 4:30 pm
Offline
I sprinkle rubber on my Cherios

Joined: Sun Jun 10, 2012 12:36 pm
Posts: 406
Location: NA
new idler pulley bracket finished and installed it is much stronger with zero flex


Top
 Profile
Reply with quote
 Post subject: Re: ABZ Fiero
PostPosted: Sat Jan 09, 2016 9:42 am
Offline
I sprinkle rubber on my Cherios

Joined: Sun Jun 10, 2012 12:36 pm
Posts: 406
Location: NA
the cam postion sensors on the abz hall or vr i know the crank is vr


Top
 Profile
Reply with quote
 Post subject: Re: ABZ Fiero
PostPosted: Sat Jan 09, 2016 9:58 am
Offline
mach 2 with my hair on fire
User avatar

Joined: Tue Feb 26, 2008 9:36 am
Posts: 1644
Location: Devon, England
Cam sensors are hall :thumbsup:

_________________
Racecar: noun - a hole in the road in to which money is poured


Top
 Profile
Reply with quote
 Post subject: Re: ABZ Fiero
PostPosted: Sat Jan 09, 2016 2:13 pm
Offline
I sprinkle rubber on my Cherios

Joined: Sun Jun 10, 2012 12:36 pm
Posts: 406
Location: NA
thanks


Top
 Profile
Reply with quote
