Audi 90 turbo-quattro 1985

Author Message
 Post subject: Audi 90 turbo-quattro 1985
PostPosted: Fri Aug 28, 2020 9:35 am
Offline
Stuck in first
User avatar

Joined: Thu Aug 27, 2020 10:14 am
Posts: 17
Hello. I have a small workshop in which I am engaged in the restoration of cars from the 80s-90s. This is mainly Audi. I will post interesting projects one by one. The first will be the Audi 90.
Here's what came to me:

Disassembly began


_________________
Audi S8 1998
Audi urQuattro 1982


Top
 Profile
Reply with quote
 Post subject: Re: Audi 90 turbo-quattro 1985
PostPosted: Fri Aug 28, 2020 9:44 am
Offline
Stuck in first
User avatar

Joined: Thu Aug 27, 2020 10:14 am
Posts: 17
I started with welding. There was almost no rust on the body; only sills and rear arches were required to be replaced. An iron profile was welded into the sills to increase the rigidity of the body.

the battery has been moved to the trunk

Hydrohandler installed

On the rear and front there are spacers for the body glasses
[img]https://a.d-cd.net/ee7ca65s-960.jpg
[/img]

Then everything is covered with epoxy primer and then paint. Bottom covered with gravel protection


_________________
Audi S8 1998
Audi urQuattro 1982


Top
 Profile
Reply with quote
 Post subject: Re: Audi 90 turbo-quattro 1985
PostPosted: Fri Aug 28, 2020 9:53 am
Offline
Stuck in first
User avatar

Joined: Thu Aug 27, 2020 10:14 am
Posts: 17
The front suspension from the Audi 80 и4 and the stock rear went to sand processing

Then, as usual, epoxy primer and paint

Wheels for the winter p15, for the summer p16 also went through sand and painting

Calipers from audi s2

assembly

Springs H&R -35mm

Shock absorbers Bilstein B6

_________________
Audi S8 1998
Audi urQuattro 1982


Top
 Profile
Reply with quote
 Post subject: Re: Audi 90 turbo-quattro 1985
PostPosted: Fri Aug 28, 2020 9:59 am
Offline
Stuck in first
User avatar

Joined: Thu Aug 27, 2020 10:14 am
Posts: 17

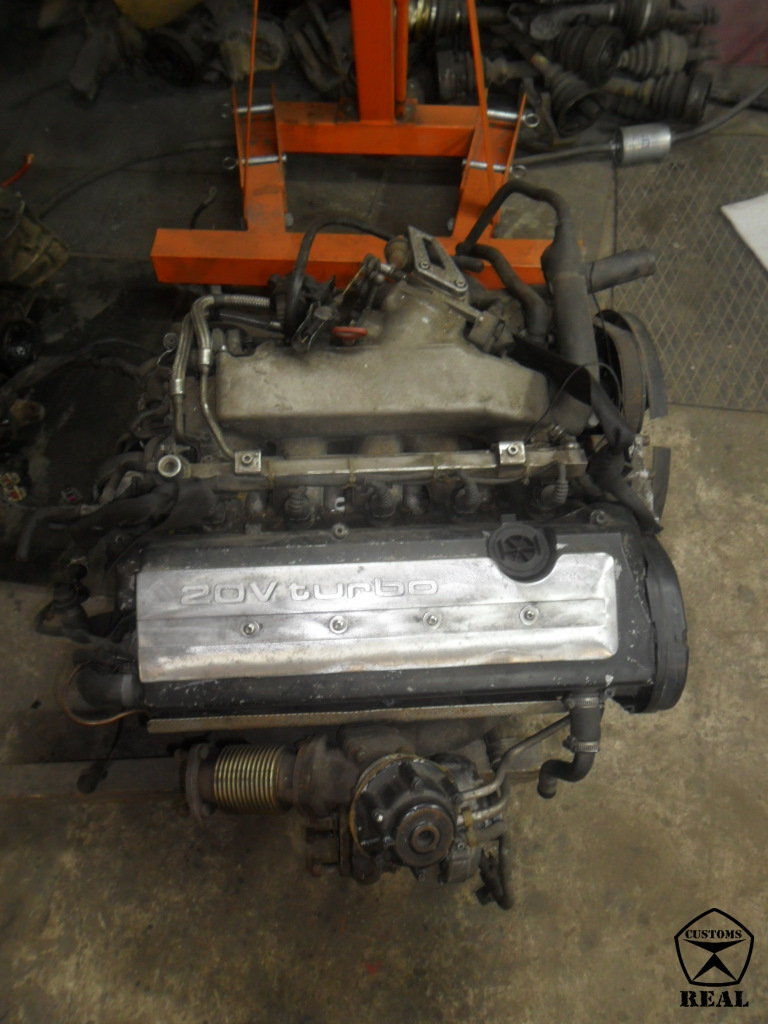

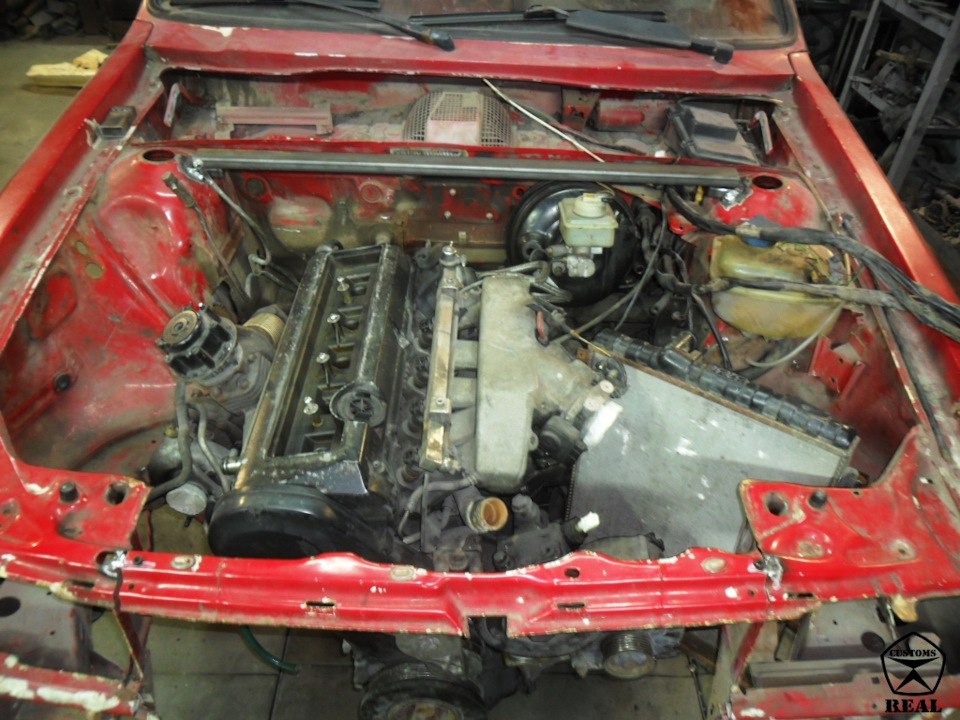

Before painting the body, you need to arrange everything in the engine compartment, make fasteners and other elements that should be painted, well, in general, try everything on so that you do not cut and cook on the new body. Motor 2.2 20v turbo (AAN)

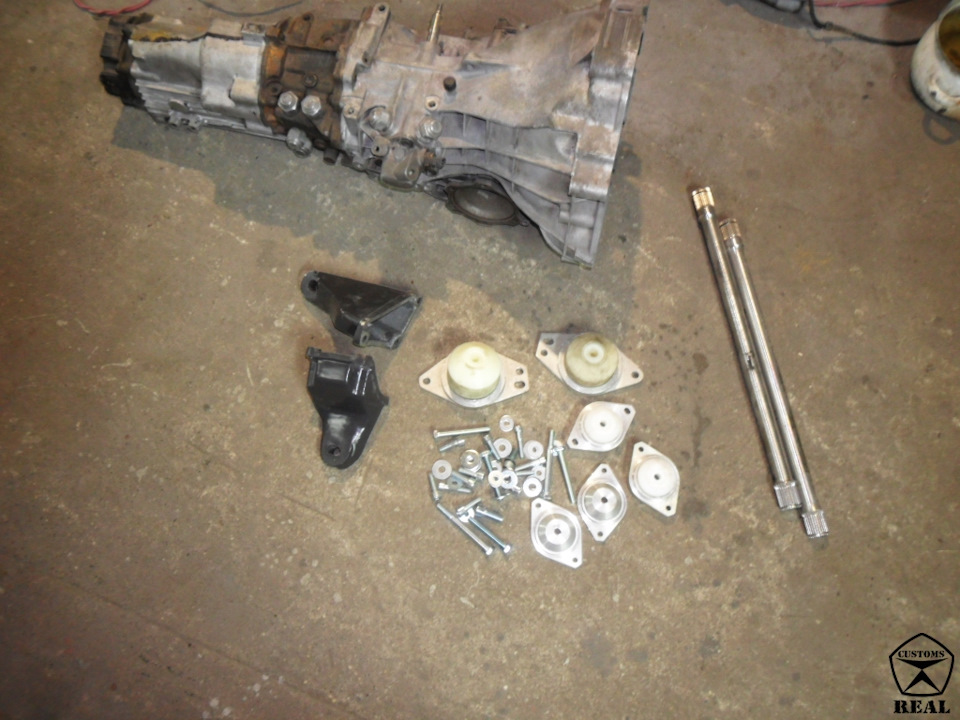

gearbox 01e custom

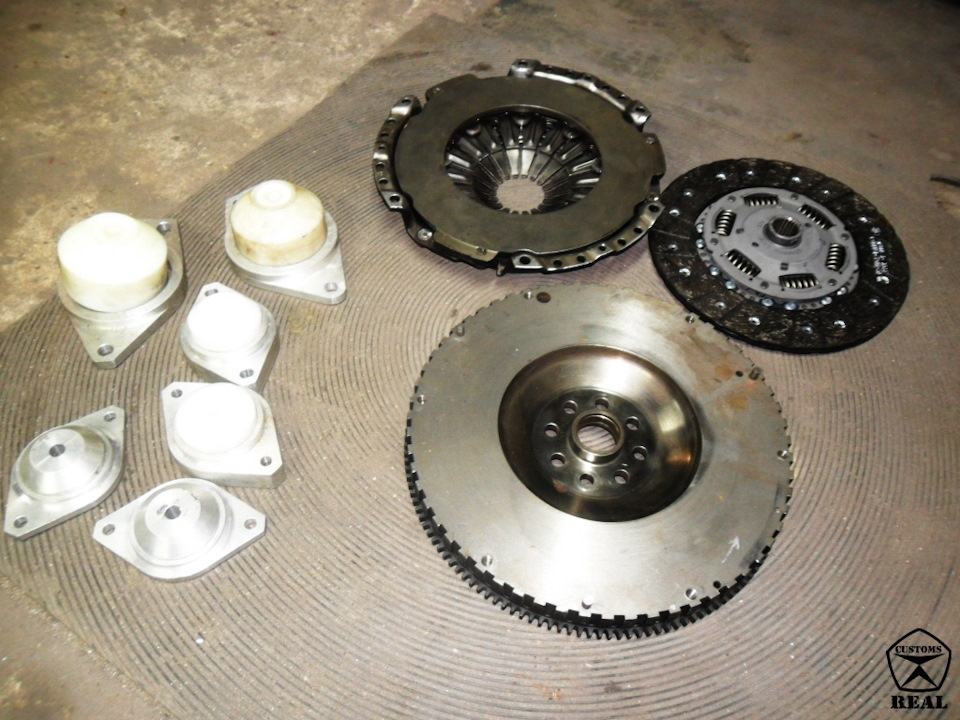

Lightweight flywheel, double-leaf basket, this body should digest 600 + Nm

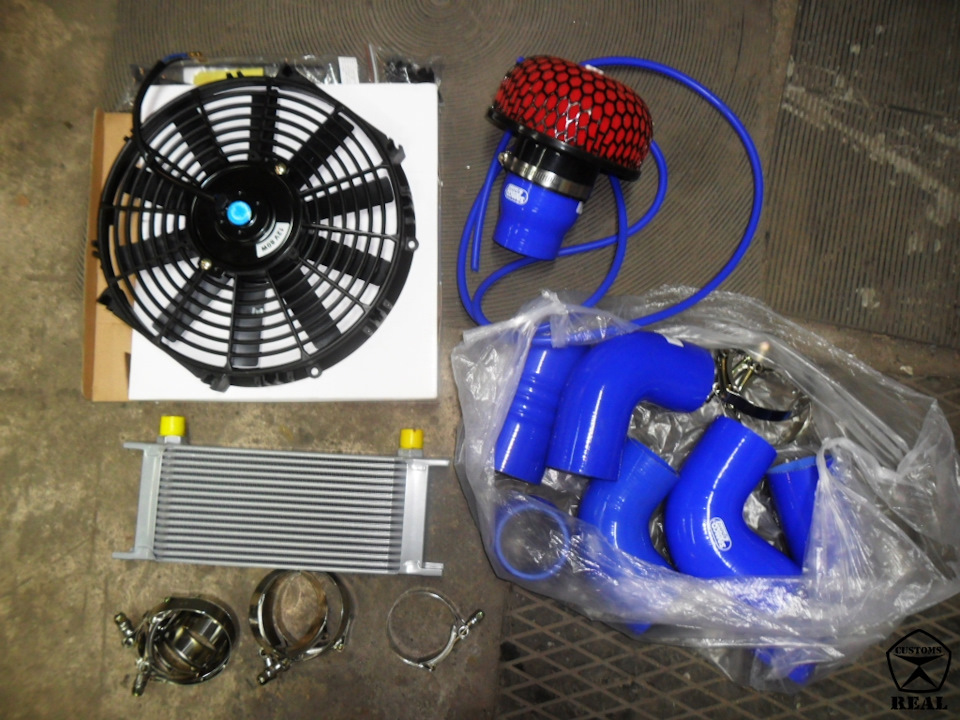

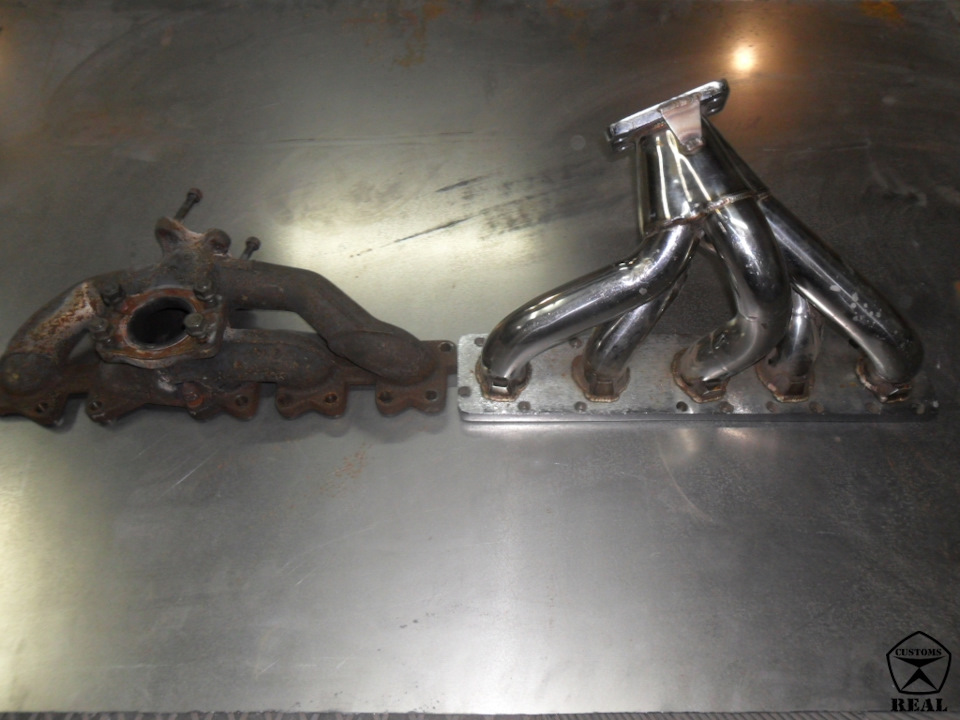

Manifold, 16 in-line mocal oil cooler, thin fan, piping and other tuning

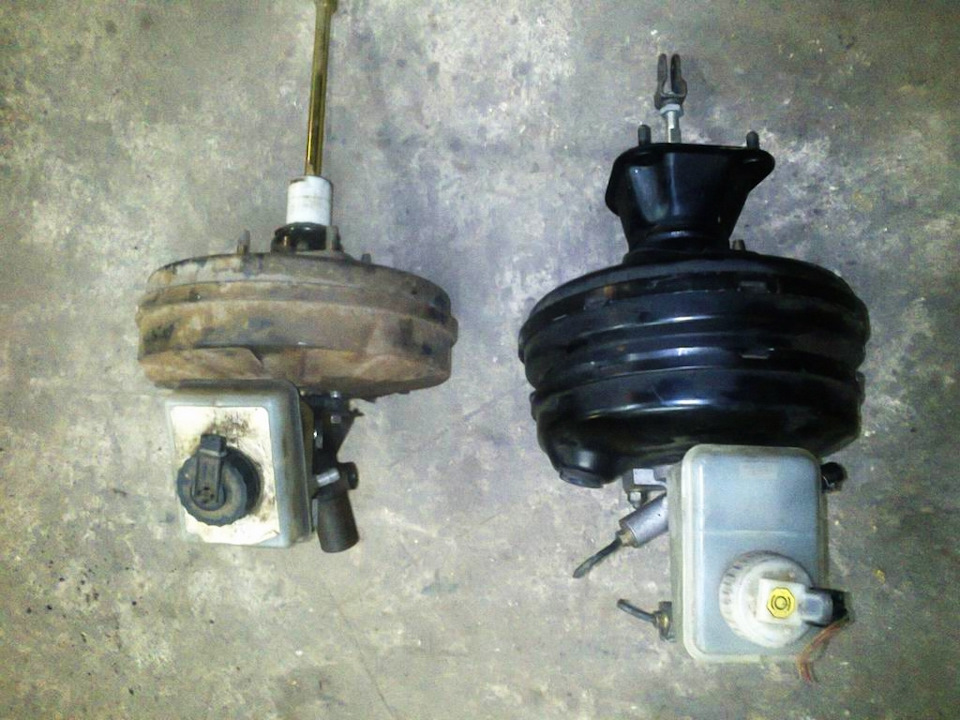

vacuum booster from opel omega

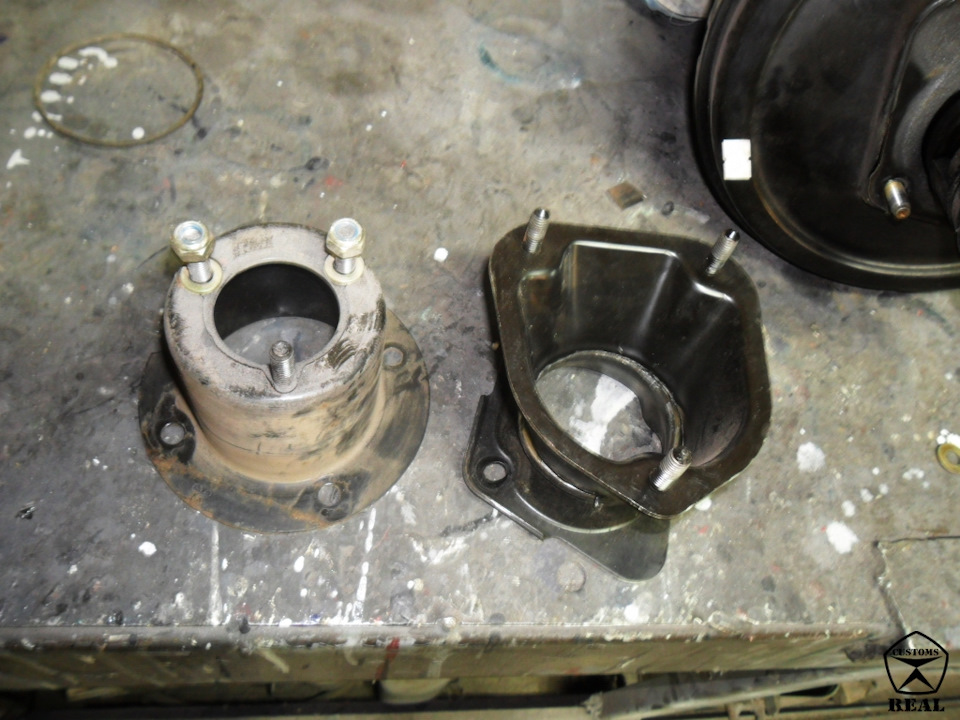

front strut


_________________
Audi S8 1998
Audi urQuattro 1982


Top
 Profile
Reply with quote
 Post subject: Re: Audi 90 turbo-quattro 1985
PostPosted: Fri Aug 28, 2020 10:03 am
Offline
Stuck in first
User avatar

Joined: Thu Aug 27, 2020 10:14 am
Posts: 17

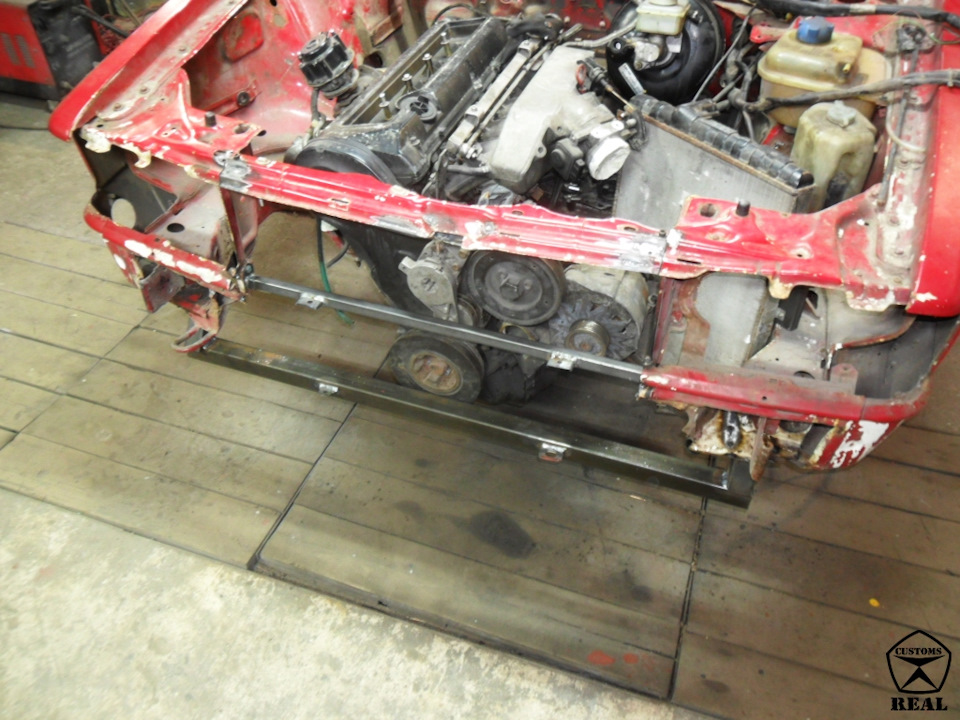

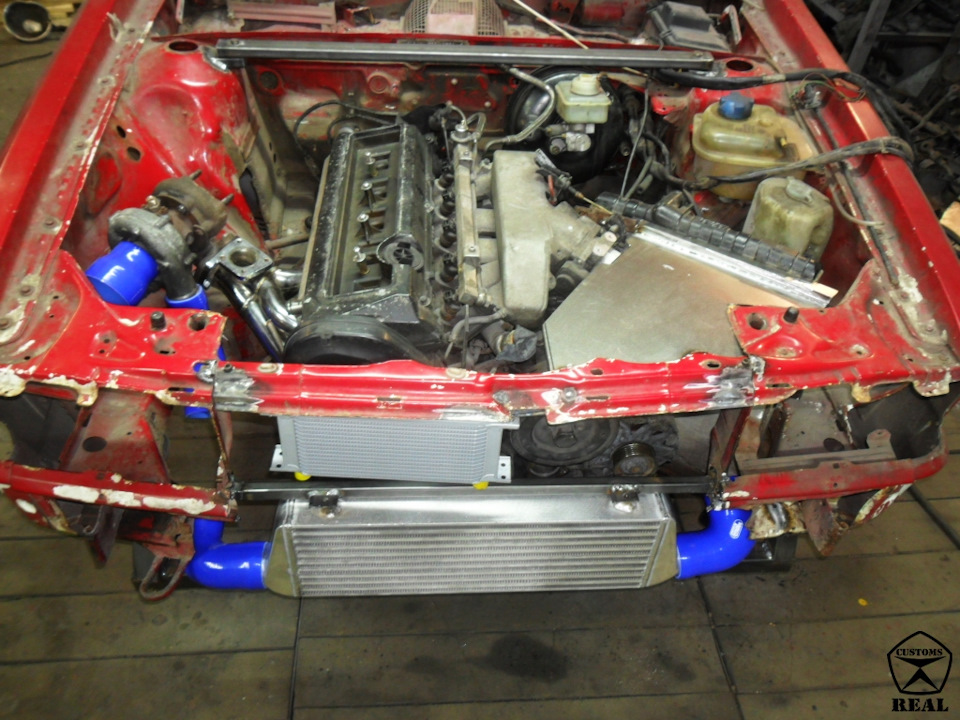

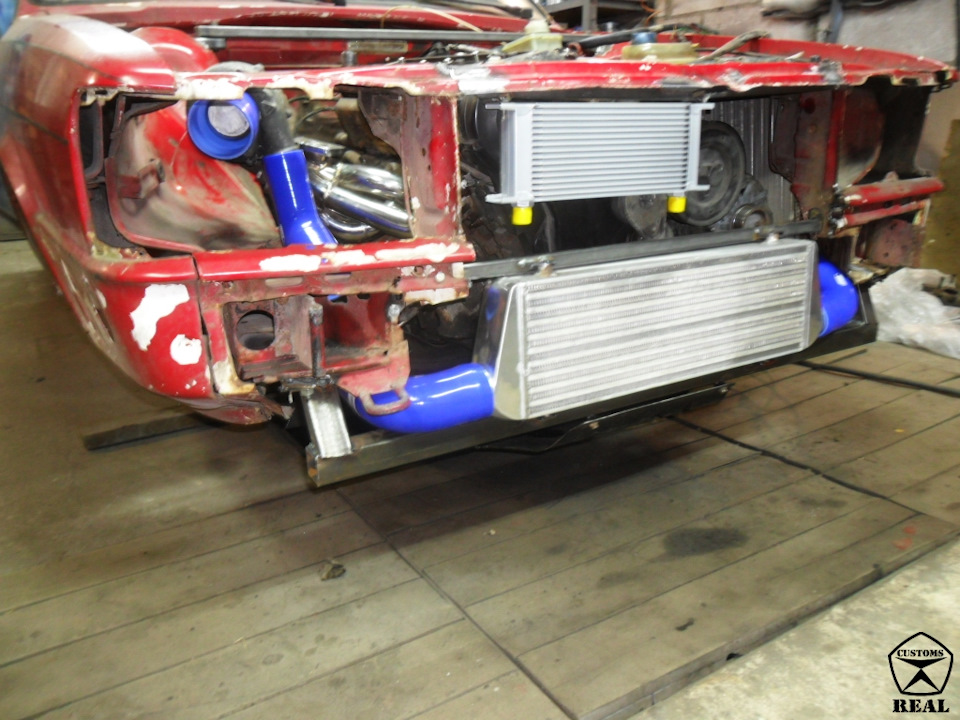

Next, the most difficult thing is to install radiators without changing the appearance, so that the car has a drain outside, without the intercooler hanging under the bumper

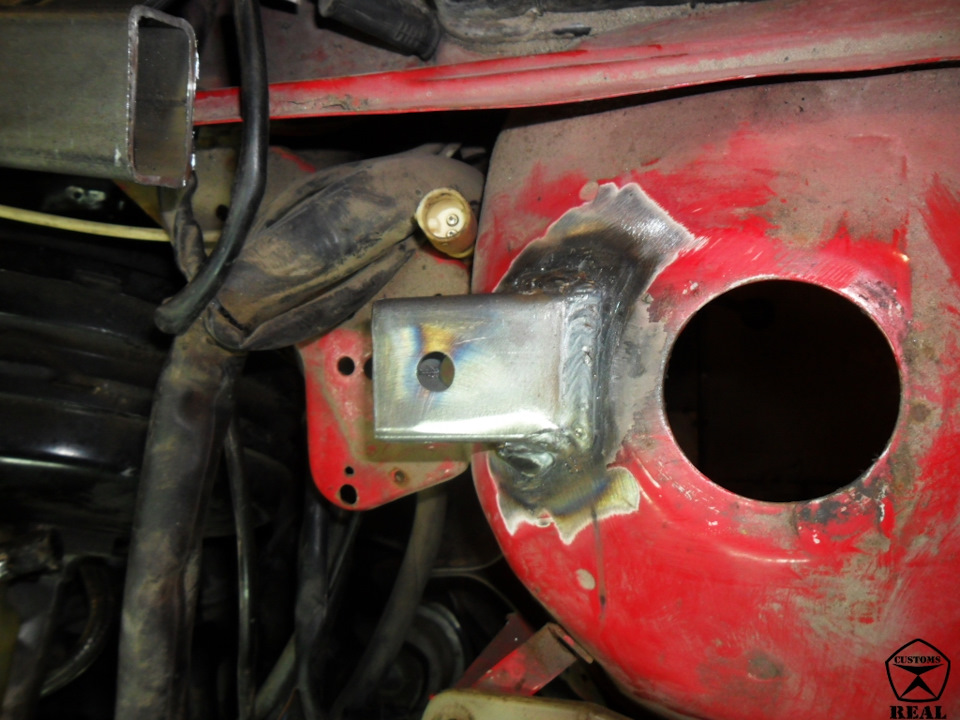

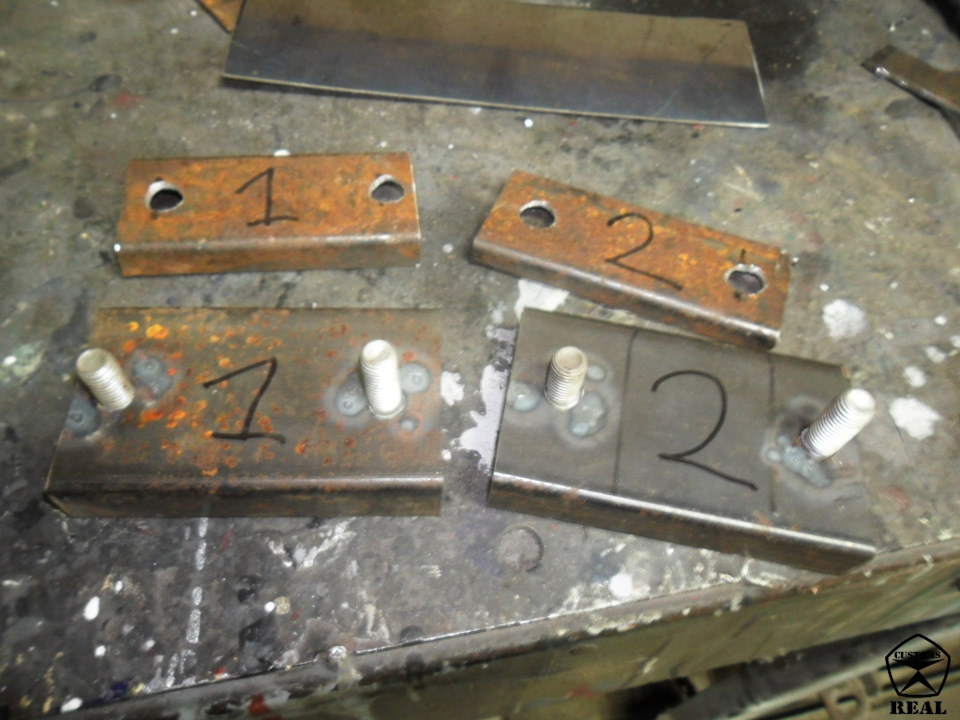

fasteners to the side members

A spacer is screwed onto it, on which the intercooler is attached

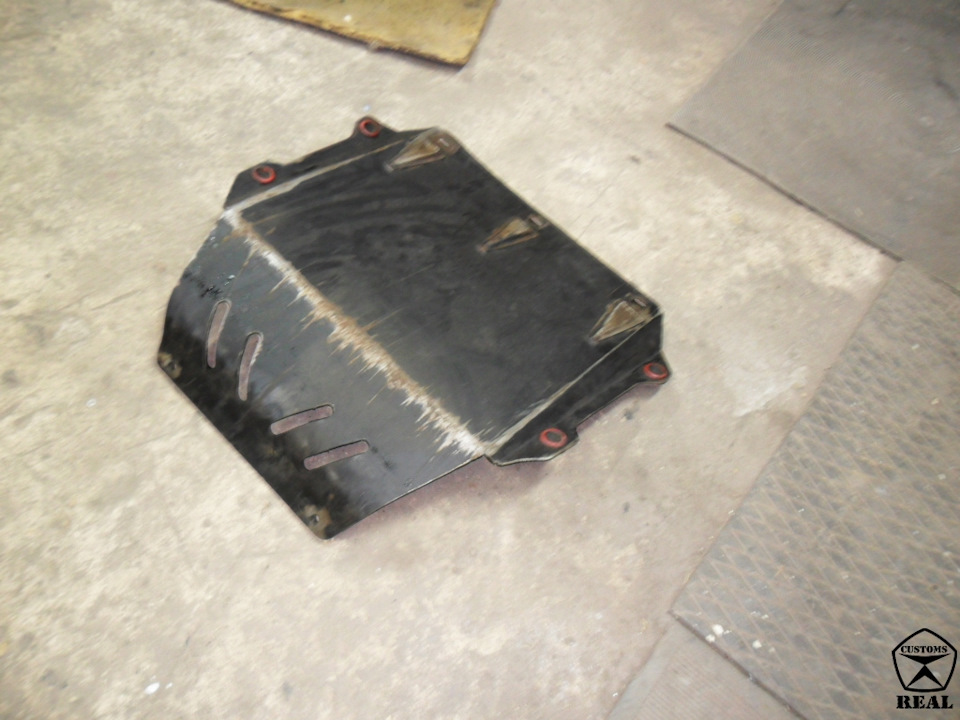

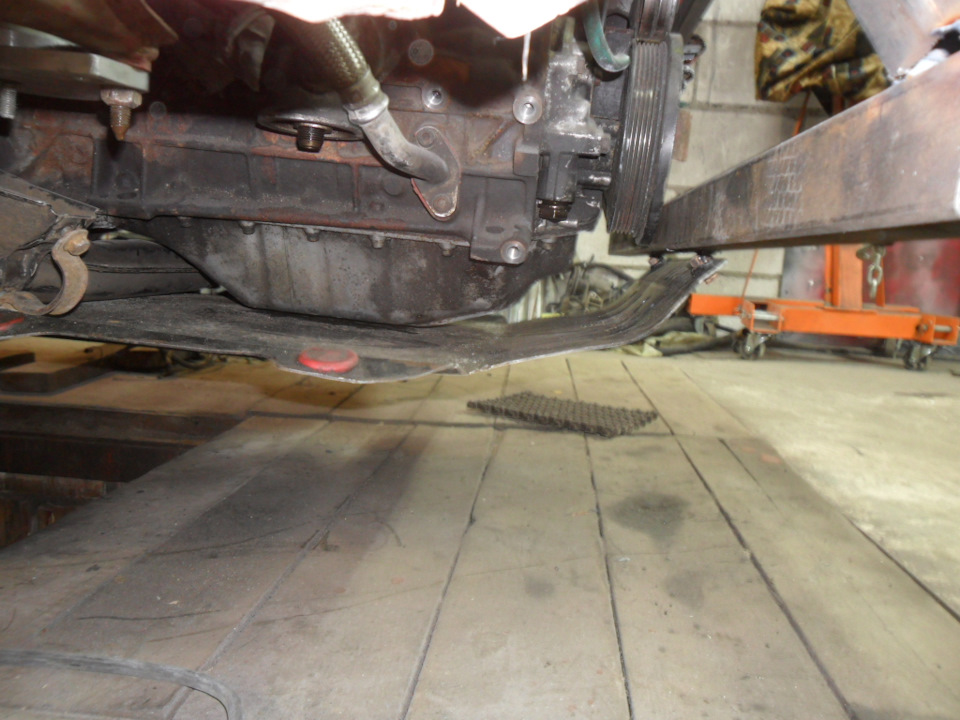

Another element is the crankcase protection

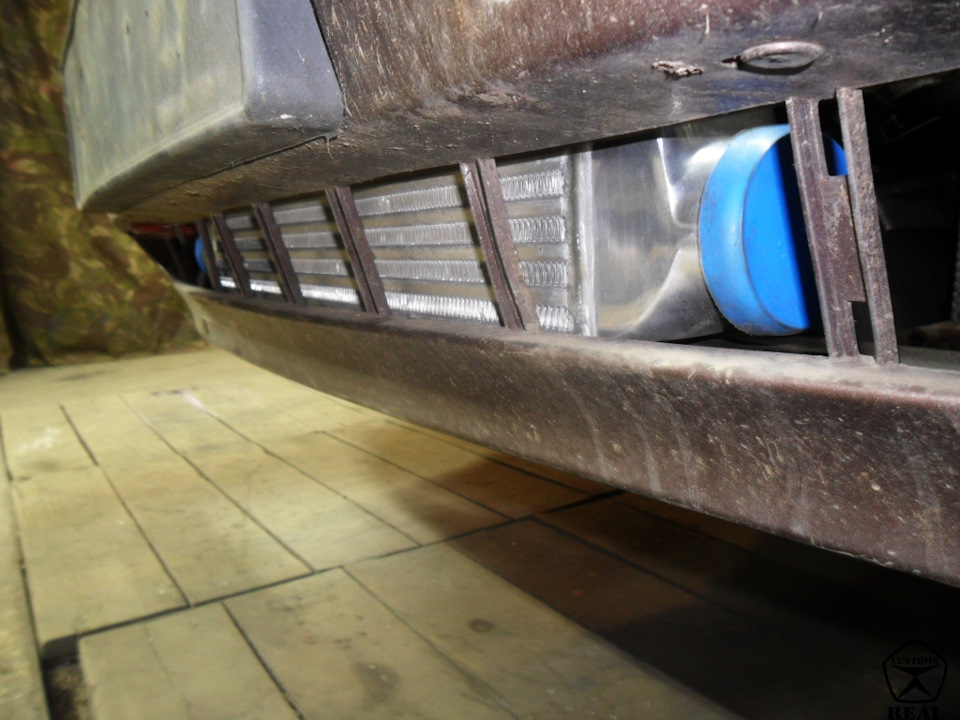

The result, the grille and the bumper become, nothing is visible.
Then again everything will be sorted out to the bare body and will be painted.


_________________
Audi S8 1998
Audi urQuattro 1982


Top
 Profile
Reply with quote
 Post subject: Re: Audi 90 turbo-quattro 1985
PostPosted: Fri Aug 28, 2020 10:08 am
Offline
Stuck in first
User avatar

Joined: Thu Aug 27, 2020 10:14 am
Posts: 17
Due to the different location of the turbine, I made a new oil supply line to the turbine.

Downpipe 70mm

I assembled the rear axle shafts, the CV joints sat down well, but still, for reliability, they were put on the lock, so that there would not be a backlash.
The sticks are covered with sand, painted and shrink-wrapped.

_________________
Audi S8 1998
Audi urQuattro 1982


Top
 Profile
Reply with quote
 Post subject: Re: Audi 90 turbo-quattro 1985
PostPosted: Fri Aug 28, 2020 10:10 am
Offline
Stuck in first
User avatar

Joined: Thu Aug 27, 2020 10:14 am
Posts: 17
Everything was taken out from under the hood and the preparation of the body for painting began.

Some elements are sandwiched and, together with problem areas in the engine compartment, are covered with epoxy, then, where necessary, joint sealant.

_________________
Audi S8 1998
Audi urQuattro 1982


Top
 Profile
Reply with quote
 Post subject: Re: Audi 90 turbo-quattro 1985
PostPosted: Fri Aug 28, 2020 1:08 pm
Offline
Stuck in first
User avatar

Joined: Thu Aug 27, 2020 10:14 am
Posts: 17
The time has come to paint everything:
Suspension
Motor covers
The engine compartment and everything that is screwed in there


And the body itself

Further assembly:
Subframe and levers b4 2.8


_________________
Audi S8 1998
Audi urQuattro 1982


Top
 Profile
Reply with quote
 Post subject: Re: Audi 90 turbo-quattro 1985
PostPosted: Fri Aug 28, 2020 4:00 pm
Offline
Redline?

Joined: Wed Oct 29, 2014 7:31 am
Posts: 161
Very impressive. No shortcuts.


Top
 Profile
Reply with quote
 Post subject: Re: Audi 90 turbo-quattro 1985
PostPosted: Sat Aug 29, 2020 6:23 am
Offline
I post, therefore I am
User avatar

Joined: Wed Jan 07, 2004 2:26 pm
Posts: 11647
Location: Findlay, Ohio
Nice!! What is the deal with the hydraulic hand brake? I've not seen that handle setup before, and it looks interesting to say the least.

_________________
http://coupe.gofergusons.org
'13 Q7 TDI
'07 Q7 3.6
'90 CQ 32v
'90 CQ 0v


Top
 Profile
Reply with quote
 Post subject: Re: Audi 90 turbo-quattro 1985
PostPosted: Sat Aug 29, 2020 3:38 pm
Offline
Chirping second

Joined: Thu Oct 17, 2019 6:43 pm
Posts: 96
Cant wait to see this one completed! Im also curious about that handbrake :?

_________________
1988 Audi 90Q 10v - AAN Swap in the works
https://www.motorgeek.com/viewtopic.php?f=6&t=218089" onclick="window.open(this.href);return false;


Top
 Profile
Reply with quote
 Post subject: Re: Audi 90 turbo-quattro 1985
PostPosted: Mon Aug 31, 2020 9:14 am
Offline
Stuck in first
User avatar

Joined: Thu Aug 27, 2020 10:14 am
Posts: 17
The hand brake is not made here in order to use it as a parking brake, but to start the car into a skid on the go

_________________
Audi S8 1998
Audi urQuattro 1982


Top
 Profile
Reply with quote
 Post subject: Re: Audi 90 turbo-quattro 1985
PostPosted: Mon Aug 31, 2020 9:32 am
Offline
Stuck in first
User avatar

Joined: Thu Aug 27, 2020 10:14 am
Posts: 17
go ahead

With the wings, everything was complicated, I had to spend a couple of days to create a new
Aluminum shields for protection from dirt

Motor in place
To reduce the length of the motor and hide the intercooler with a bumper, I had to grind off the crankshaft pulley
At the same time, replacing the tired crankshaft gear and removing the plunger from the power steering pump to the brake circuit. The alternator belt is now shorter because no viscous coupling and air conditioning
[img]https://a.d-cd.net/67b0fcds-960.jpg
[/img]
The collector and downpipe are wrapped in a thermal wrap

_________________
Audi S8 1998
Audi urQuattro 1982


Top
 Profile
Reply with quote
 Post subject: Re: Audi 90 turbo-quattro 1985
PostPosted: Mon Aug 31, 2020 9:37 am
Offline
Stuck in first
User avatar

Joined: Thu Aug 27, 2020 10:14 am
Posts: 17
Preparation and painting of the rest of the body parts.
For a 30+ year old car, this is not an easy process. Most of the elements simply cannot be found in a living state.
The same goes for everything else: the wiper mechanisms
Everything was filmed down to metal. Then it was leveled, filled with epoxy
Painting

_________________
Audi S8 1998
Audi urQuattro 1982


Top
 Profile
Reply with quote
 Post subject: Re: Audi 90 turbo-quattro 1985
PostPosted: Mon Aug 31, 2020 9:45 am
Offline
Stuck in first
User avatar

Joined: Thu Aug 27, 2020 10:14 am
Posts: 17
The time has come to make a new wiring. Since the battery migrated into the trunk, I began by laying a new power one for the generator, starter, fuse box, and also the mass.
Further, AEM additional devices + VAG devices were purchased. ECUmaster brain, wires, heat shrink, etc.
The brain was located in the cabin under the panel and from there he spread the wiring

Vag additional devices overexposed diodes that would fit into the tone of the rest of the illumination
Made a podium instead of a duct grill

Refurbished headlights

_________________
Audi S8 1998
Audi urQuattro 1982


Top
 Profile
Reply with quote
 Post subject: Re: Audi 90 turbo-quattro 1985
PostPosted: Mon Aug 31, 2020 5:57 pm
Offline
I post, therefore I am
User avatar

Joined: Wed Jan 07, 2004 2:26 pm
Posts: 11647
Location: Findlay, Ohio
realcustoms wrote:
The hand brake is not made here in order to use it as a parking brake, but to start the car into a skid on the go


Gotcha, makes sense.

_________________
http://coupe.gofergusons.org
'13 Q7 TDI
'07 Q7 3.6
'90 CQ 32v
'90 CQ 0v


Top
 Profile
Reply with quote
 Post subject: Re: Audi 90 turbo-quattro 1985
PostPosted: Mon Aug 31, 2020 7:38 pm
Offline
kickin' tires'n lightin fires
User avatar

Joined: Tue Nov 27, 2007 9:55 pm
Posts: 706
Location: Owasso, OK
I’m impressed! Very nice work.


Sent from my iPhone using Tapatalk

_________________
Brent
1991 CQ - Project Car


Top
 Profile
Reply with quote
 Post subject: Re: Audi 90 turbo-quattro 1985
PostPosted: Sat Sep 12, 2020 12:40 pm
Offline
mach 2 with my hair on fire
User avatar

Joined: Fri Mar 26, 2004 3:02 pm
Posts: 2949
Location: Milton, Canada
Shit load of work there! Well done. Glad to see the car saved.

_________________
Martin Pajak
www.quattro.ca
82 Ur-q - SQ project, long term
83 80 q - Euro 2-door!!
85 Ur-q - Euro with 3B
93 90 quattro - S2 Limo copy
93 80q Avant - 2.5TDI, 6-speed in the works
04 A4q avant 1.8T USP 6-speed
04 A4q avant 3.0 USP 6-speed


Top
 Profile
Reply with quote
 Post subject: Re: Audi 90 turbo-quattro 1985
PostPosted: Tue Sep 15, 2020 11:52 am
Offline
Stuck in first
User avatar

Joined: Thu Aug 27, 2020 10:14 am
Posts: 17
Assembly


Since the car will be intensively used in winter, all the spars are flooded with Movil and the hidden elements are missed with pushers, a metal pallet protection is also installed.
And an aluminum fuel pump.

Welded exhaust 70mm, with stock can at the end

Since there is a new gearbox, I had to change it from fur to an electronic speedometer
[img]
https://a.d-cd.net/6f435804l4a-960.jpg[/img]
And illuminate the tidy with diodes


Installed a racing wheel


_________________
Audi S8 1998
Audi urQuattro 1982


Top
 Profile
Reply with quote
 Post subject: Re: Audi 90 turbo-quattro 1985
PostPosted: Tue Sep 15, 2020 11:55 am
Offline
Stuck in first
User avatar

Joined: Thu Aug 27, 2020 10:14 am
Posts: 17

_________________
Audi S8 1998
Audi urQuattro 1982


Top
 Profile
Reply with quote
 Post subject: Re: Audi 90 turbo-quattro 1985
PostPosted: Tue Sep 15, 2020 7:06 pm
Offline
I post, therefore I am
User avatar

Joined: Wed Jan 07, 2004 2:26 pm
Posts: 11647
Location: Findlay, Ohio
That looks fantastic, have any videos of it running/driving?

_________________
http://coupe.gofergusons.org
'13 Q7 TDI
'07 Q7 3.6
'90 CQ 32v
'90 CQ 0v


Top
 Profile
Reply with quote
 Post subject: Re: Audi 90 turbo-quattro 1985
PostPosted: Wed Sep 16, 2020 12:50 pm
Offline
Stuck in first
User avatar

Joined: Thu Aug 27, 2020 10:14 am
Posts: 17
cuatrokoop wrote:
That looks fantastic, have any videos of it running/driving?

After running in and setting up, the car immediately went to the client, here is a small fragment of running in this link
https://www.instagram.com/p/BpHyI9lBcVr/

_________________
Audi S8 1998
Audi urQuattro 1982


Top
 Profile
Reply with quote
 Post subject: Re: Audi 90 turbo-quattro 1985
PostPosted: Thu Sep 17, 2020 6:29 am
Offline
I post, therefore I am

Joined: Fri Jun 18, 2004 8:32 pm
Posts: 7425
Location: Fort Wayne, Indiana
Absolutely awesome. Love the direction here. Interior looks clean and stock'ish but there is some good grunt under the hood ;)

_________________
1986 4kq CE
1991 200 20v wagon


Top
 Profile Facebook
Reply with quote
 Post subject: Re: Audi 90 turbo-quattro 1985
PostPosted: Thu Sep 17, 2020 10:11 am
Offline
Stuck in first
User avatar

Joined: Thu Aug 27, 2020 10:14 am
Posts: 17
Thank you, this was the goal, to make a stock car externally, but capable of much

_________________
Audi S8 1998
Audi urQuattro 1982


Top
 Profile
Reply with quote
Display posts from previous:  Sort by
Post new topic Reply to topic  [ 24 posts ]
Search this topic:
motorgeek.com :: Board index :: Motorgeek Madness :: Projects

Jump to:



Information

Users browsing this forum: No registered users and 2 guests



You cannot post new topics in this forum
You cannot reply to topics in this forum
You cannot edit your posts in this forum
You cannot delete your posts in this forum
You cannot post attachments in this forum
  |  It is currently Tue Sep 22, 2020 1:36 pm
Share |
